Industrial Waterproof Platform Weighing Scale | Checkweighing solutions for food processing | Capacity 10 kg, 20 kg, 30 kg, 50 kg, 100 kg, 200 kg, 300 kg, 500 kg
” Built to meet the fast-paced demands of the food industry”

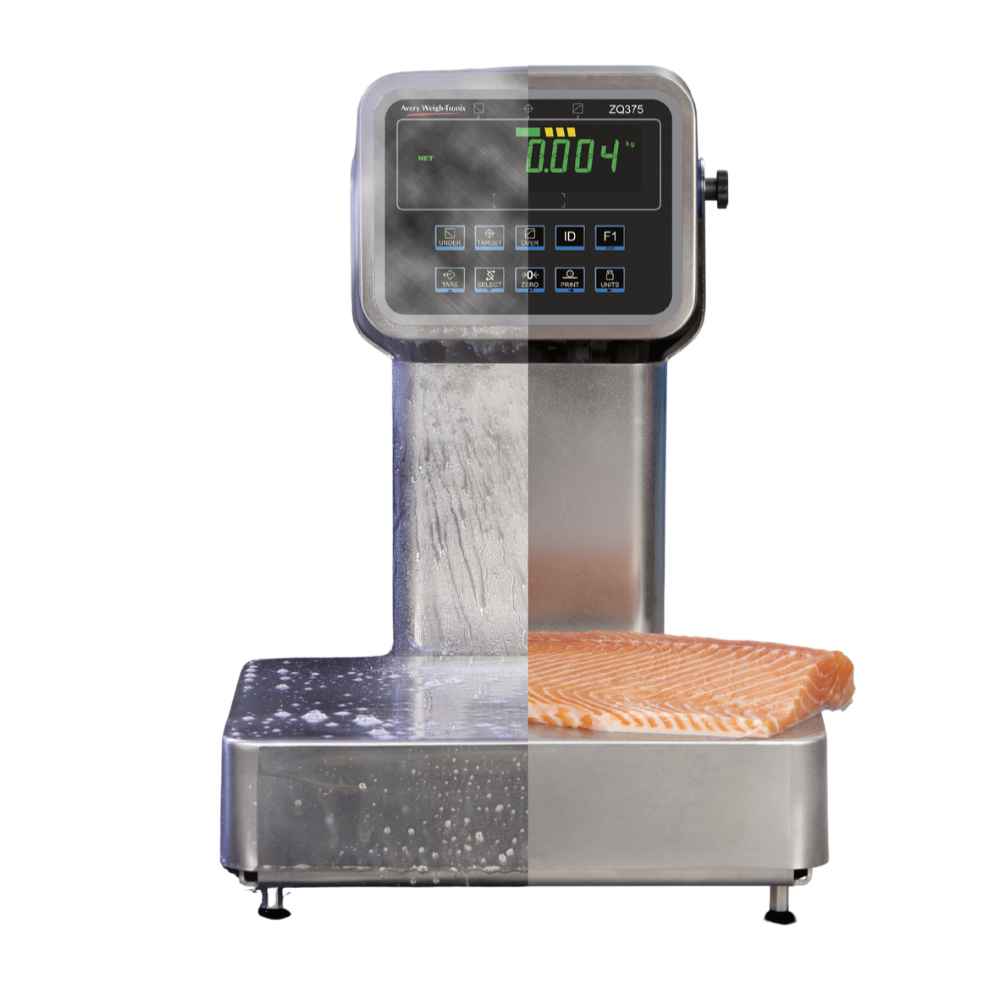

The Industrial Waterproof Weighing Scale is the latest innovation in checkweighing from Avery Weigh-Tronix. Featuring food-grade, stainless steel construction, the industrial Waterproof Weighing Scale is a highly efficient solution for the food industry and beyond. From complete visibility of weighing data and statistics to fast, effective, simple checkweighing, the Industrial Waterproof Weighing Scale can help you to maximize performance and profitability while meeting the strictest legislative requirements.
Industrial Waterproof Weighing Scale Features:-
- Certified by NSF to NSF/ANSI Standard 3-A
- IP69K washdown stainless steel enclosures
- 5000d NTEP (3000d OIML) approved
- Rounded corner design minimizes food trap areas
- Rugged bases with up to 500% overload protection
- Highly visible IBN display with color-coded under/target/over the bar graph
- Multi-connectivity; Ethernet, USB, Wireless
- AC or battery-powered
- Several applications pre-installed
- PLU storage
- ID user control
Sanitation and hygiene
When it comes to the food processing industry, hygiene is paramount. Certified by NSF to NSF/ANSI Standard 3-A, the Industrial Waterproof Weighing Scale has been specifically designed to meet the needs of this demanding environment:

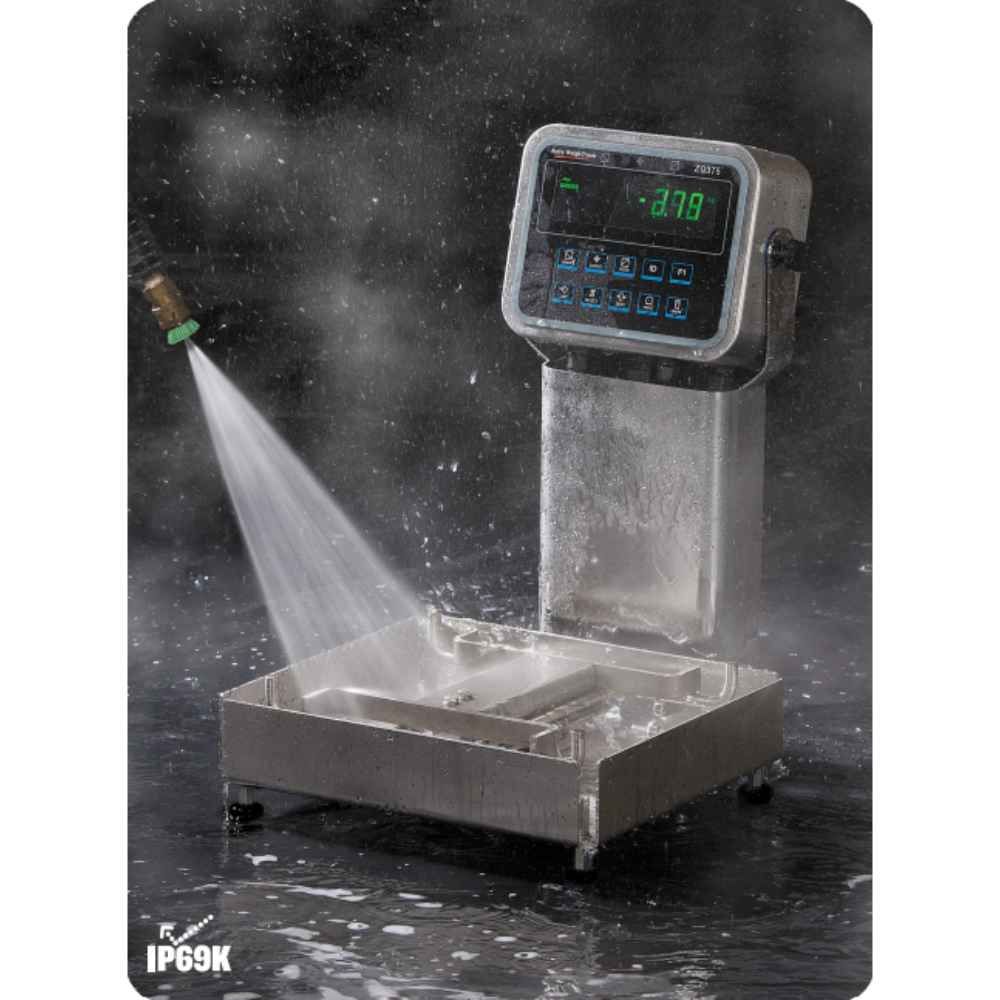

Durable, stainless steel, IP69K rated enclosure ensures that this product is completely resistant to dust and water ingress, making the Industrial Waterproof Weighing Scale ideal for use in high pressure and heavy washdown applications.
We recognize that good hygiene is vital to business success in the food industry. In line with USDA and other sanitation and hygiene standards, this NSF certified piece of equipment guarantees hygiene safety at all times. The Industrial Waterproof Weighing Scale has been designed for ease of cleaning. A smooth pickled and polished surface finish helps to stop microorganisms from growing on the surface of the scale. Curved corners and the easy-to-remove cover make thorough cleaning simple, fast, and effective, minimizing food trap areas where bacteria could thrive. All threads are hygienically covered with domed nuts to aid and speed up cleaning processes.
IP69K GORE® Vent
In food applications, check weighers may be subject to rapid temperature change, whether due to operating conditions or washdown procedures. Extremes of the temperature inside and outside the enclosure can result in the expansion and contraction of gases, which in turn can lead to moisture and humidity becoming trapped inside. To avoid this issue, the Avery Weigh-Tronix IP69K certified check weighers are fitted with a GORE® Vent membrane, which allows the checkweigher to breathe without compromising the IP69K enclosure. This industrial food-grade technology guarantees no downtime due to water ingress.
Two rugged base designs
The Industrial Waterproof Weighing Scale check weigher is available in a range of sizes with two base types. Each base has built-in features designed to suit its capacity.
Low capacity: Torsion Base
Able to withstand up to 500% shock loading, our breakaway load transfer system helps to guarantee accuracy and reliability at all times. This specialized base automatically transfers shock loads and overloads away from the load cell back to the base frame, ensuring that the scale’s accuracy and performance are not affected. Unlike other designs used to reduce shock loading, this food-grade stainless steel design offers a clean and uncomplicated solution that is fully NSF Certified and washdown resistant.
High capacity: Diamond Base
The IP69K Diamond Series Base has set a standard for high performance. With 150% overload protection, this tough and dependable design is low maintenance, with an extremely reliable single load cell design and no moving parts.
Multi-Connectivity in Industrial Waterproof Weighing Scale
Offering the advantage of the built-in interface, Ethernet 10/100, USB, and RS232, the indicator is ideally suited for sharing information, giving you all you need for complete data management and process control.
Ethernet and USB connectivity
Available with Ethernet and USB connectivity as standard, the Industrial Waterproof Weighing Scale can be hard-wired into the indicator or through an optional IP69K USB or Ethernet gland to allow a fast and simple option for disconnecting the cable prior to cleaning.
For fast, efficient data transfer, ease of cleaning, and the ability to remove all unwanted cabling, the Industrial Waterproof Weighing Scale offers a wireless option with a 200ft (60m) workable distance between receivers subject to working environments.
Ease of Use of Industrial Waterproof Weighing Scale
The Industrial Waterproof Weighing Scale features a highly visible, low power draw IBN display. This display offers ease of viewing in all lighting conditions, from direct sunlight to low lit areas. It’s large, nine segment digits, and colored multi-segmented under/overweight graph gives the operator a fast visual indication when the product weight is getting close to the acceptable target tolerance. This visual display can be reinforced by an external audible alarm, resulting in an incredibly user-friendly, yet highly accurate piece of equipment.
Simple operation, powerful capabilities
The Industrial Waterproof Weighing Scale can be configured to suit your business process, from fast and simple stand-alone check weighing, to PLU controlled statistical data collection devices.
The Industrial Waterproof Weighing Scale features three levels of authorization, allowing the supervisor to quickly lock down keys and functionality to specific operators or open it up to allow access to other functions of the Industrial Waterproof Weighing Scale.
Applications of Industrial Waterproof Weighing Scale
Designed to be efficient and simple to use, the ZQ375 can be set up in a number of different ways:
Quick Check set up
A fast and efficient way to quickly set up a simple production line at the touch of a single button, using a known target sample weight and pre-programmed under and over limits.
Entered target limits
Target tolerances can quickly be entered through the indicator front panel or changed by scrolling up or down with a long press on the under and over keys.
Positive and Negative checkweighing
Designed to work in a number of different ways to help maximize efficiencies within the production line, the ZQ375 has the functionality for both positive and negative checkweighing and displaying in both ± the target deviation or just in Gross/Net weight.
Statistical data packages
The ZQ375 checkweigher offers you complete visibility of weighing data, with a range of statistical data packages built into the scale which can help monitor and control process line efficiencies directly on the line or via feedback to a central PC database.
Target weight PLU storage
The ZQ375 has the ability for up to 500 PLUs to store individual target weights, upper and lower tolerances, units of measure and other statistical data requirements to help speed up production line set up
Custom statistical data transfer
The ZQ375 can also be remotely set up to receive target weights and tolerances for pack line consistency and to help speed up production line set up.
Used to monitor and improve efficiencies or to record a list of data. For example: number of samples that were over, under or fell within the accept band; the average sample weight; the highest and lowest weight recorded and the overall standard deviation of that pack run.
X/R data collection
Ideal for quality control, the built-in software provides you with a standard X-bar data detailing changes in the mean or average over time, while the R chart shows how the range of the subgroup changes over time.
Custom statistical data
Outside the fixed statistical data packages provided within the ZQ375, a wide range of individual statistical information can be transmitted separately to meet most customers’ requirements.
Industrial waterproof weighing scales options
- Wireless Card & Antenna Kit 802.11b/g wireless
- USB Device Card – Provides USB interface to PC.
- Light Stack – Provides extra visibility to the operator or supervisor. Mounts neatly inside the column with the aid of the external OPTO22 relay box. (AC operation only)
- IP69K External Battery Pack
- External Relay Box – Mounts neatly inside the column. Holds up to 3 OPTO22 relays.
Specifications of Industrial Water-Proof Weighing Scale
Quick Check Application – ± Target check mode with adjustable 6 segmented red under, orange over, and large green accept bar.
Gross/Net Checkweighing Application – Gross/net check weighing mode with adjustable segmented red under, orange over, and green accept bar. Built-in transaction counter. Pack run. Configurable standard deviation and Xbar R.
Advanced Checkweighing Application – 500 PLU storage, weight, and percentage check weighing settings with fully adjustable segmented red under, orange over and green accept, under over alarms. Full range of built-in statistical packages, transaction counter, pack run, custom, and standard deviation data capture, Xbar R, negative check weighing and auto tare.
Grading Application – Up to 10 easy-to-set grading bands
Unit of Measure – Three independently configurable (Pounds, Kilograms, Ounce, Gram, Pound/Ounce, Custom).
Capacity Selections – Base capacities 5lb to 500lb (3kg to 200kg) configurable 999,999 with decimal located zero to five places
Incremental Selections – Multiples and sub-multiples of 1, 2, 5
Programmable Selections – Zero range, motion detection, automatic zero trackings, five-point linearization
Time and Date – Battery backed up time/date/year (12 hours or 24-hour format)
Calibration – Two to five points stored
Analog to Digital Measurement Rate – 80 Hz
Internal Resolution – 53,687,100 counts per mV/V per second
Digital Filtering – Harmonizer filtering with adaptable constant and threshold
Self Diagnostics – Display, keys, inputs, outputs, serial port, installed options, and last 10 Error messages
Keypad – Ten button knife and chemical resistant with audible keypress feedback
Operational Keys – Zero, Tare, Print, Select, Units, Under, Target, Over, ID, F1 Function
Status Annunciators – Zero, Motion, Gross, Net, Tare, Count, Print, Battery Status, SetPoint 1/2/3, Over/Under/Accept bar graph, lb, kg, gram, oz, Preset Tare, Percentage, Active Ethernet connection
Display – IBN illuminated 0.8” (20mm) high 8-digit, nine segment display, green on black background for indoor use. Bar graph: 6 red under segments, large green accept segment, and 6 orange over segments. 22 annunciators for status and model identification.
Display Rate – Selectable (1,2,5,10) times per second
Enclosures – Certified by NSF to NSF/ANSI Standard 3-A 14159-1 -2010, food-grade 304 brushed stainless steel enclosure (IP69K certified) with GORE® Vent ventilation and column-mounted to a range of stainless steel pickled and electropolished IP66 and IP69K bases.
Operating Temperature – 14° F to 104° F / -10° C to 40° C (Approvals) at 10 to 90% humidity -4° F to 140° F / -20° C to 60° C (industrial) at 10 to 90% humidity
Humidity – 10% to 90% relative, non-condensing
Base Construction – Easy to clean, certified by NSF to NSF/ANSI Standard 3-A, fully stainless steel food-grade 304 brushed base construction with pickle and polish weigh pan and column suitable for food contact areas. Designed with a breakaway load transfer system to help fully protect the loadcells from unwanted overloads and shock loads.
Overload Protection – Torsion base: 500%
Diamond base: 150%
Corner Loading – 100%
IP Protection – Torsion base BSG: IP65 (NEMA 4X)
Torsion base BSF: IP69K
Diamond base BS: IP69K
Approved Accuracy – Torsion Base BSG: 3000d NTEP (3000d EC /OIML)
Torsion Base BSF: 5000d NTEP and Measurement Canada (3000d EC /OIML)
Diamond Base BS: 5000d NTEP and Measurement Canada (5000d EC /OIML)
Capacity & Size of the Industrial water-proof weighing scale
|Water-Proof Weighing Scale Capacity & Size|
|Capacity (kg)||(3 x 0.001 kg)||(6 x 0.002 kg)||(15 x 0.005 kg)||(30 x 0.01 kg)||(50 x 0.02 kg)|
|Platform Size (mm)||220mm x 220mm||220mm x 220mm||(310mm x 350mm)||(310mm x 350mm)||(310mm x 350mm)|
