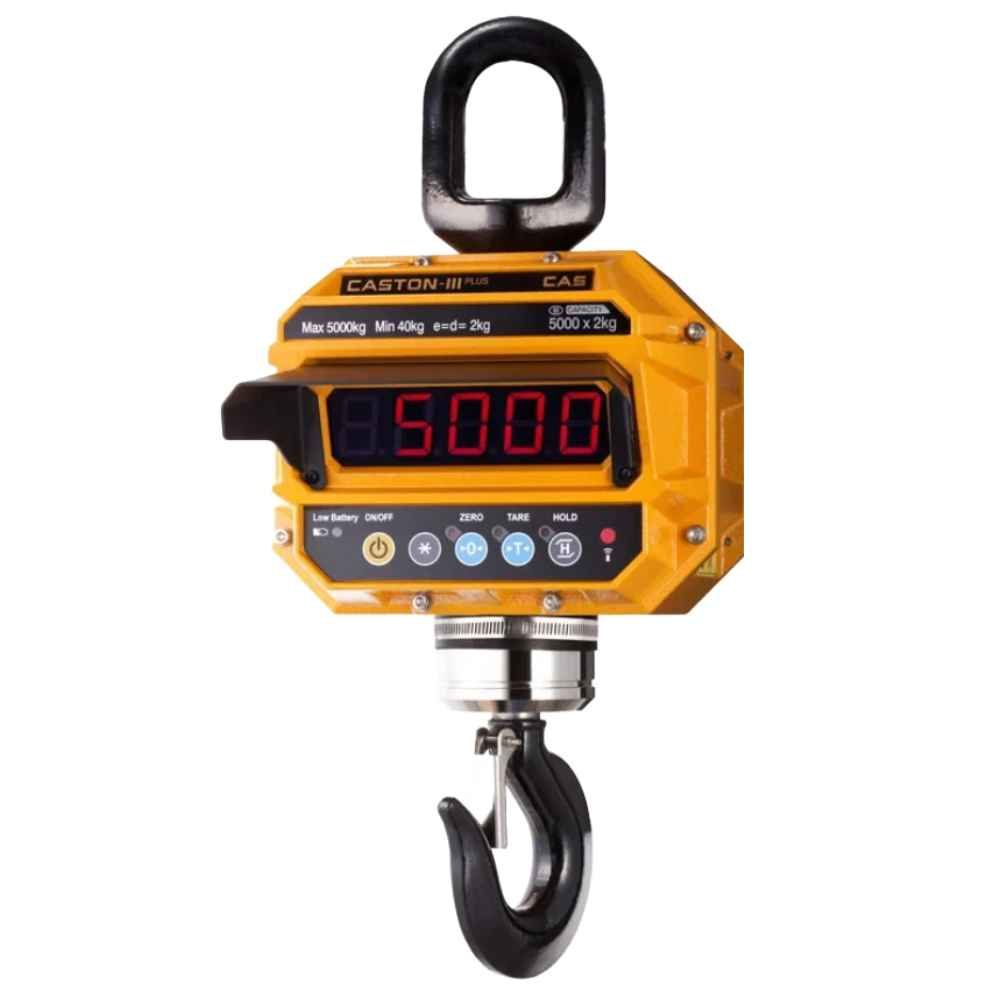

Crane Scale CAS | CASTON III | Capacity – 2 Ton, 3 Ton, 5 Ton, 10 Ton, 15 Ton, 20 Ton

(3 customer reviews)
CAS
Availability:

99 in stock

Order on Whatsapp

Fully featured high capacity crane scale, CASTON III PLUS is ideal for heavy-duty application in a rough industrial environment via rugged and watertight structure. Convenient, safe, and high accuracy with a high-visibility LED display, easy install, and recharging of the battery pack, swivel hook, and wireless remote control. Optional TWN portable handheld indicator

Crane Scale Capacity – 2000 kg, 3000 kg, 5000 kg, 10000 kg, 15000 kg, 20000 kg.

Get Free Delivery & Installation of all Weighing Scale in Only Delhi NCR – Noida, Greater Noida, Ghaziabad, Delhi, Gurugram, and Meerut (Note* –  UP Scales don’t provide delivery in outer Delhi NCR).

[caldera_form id=”CF5cbeab187482a”]

Crane Scale CAS | CASTON III | Capacity – 2 Ton, 3 Ton, 5 Ton, 10 Ton, 15 Ton, 20 Ton



Crane Scale

Fully featured high capacity crane scale, CASTON III PLUS is ideal for heavy-duty application in rough industrial environments via rugged and watertight structures. Convenient, safe, and high accuracy with a high-visibility LED display, easy install, and recharging of the battery pack, swivel hook, and wireless remote control. Optional TWN portable handheld indicator

Hardware Used in Crane Scale

  1. Rugged & watertight structure – Built to withstand rugged, moist, and dusty environments. Ideal for indoor & outdoor heavy industrial applications such as Metal Work, Recycling & Waste Industry, and Transport & Logistics.
  2. SUN VISOR(Option) – Optional Sun Visor guarantees the legibility of the display while outdoors.
  3. Remote controller – Standard wireless remote controller. Functions: Power On/ Off, Zero, Tare, Hold, Clear, Sum.
  4. Linkable with TWN(Option) – Can be used with the Optional TWN Portable Hand Held Indicator via Bluetooth. TWN offers greater control over functions while viewing the weight.
  5. High-Visibility LED Display – The LED display’s downward tilt and large characters (Height: 1.5″), provides the user with a clear and easy to read weigh value.
  6. Swivel hook – The Swivel Hook offers 360˚ movement while weighing. Increases safety, accuracy, and repeatability.

Easy to change the battery pack

Easily access the rechargeable battery pack by hand for recharging and re-installing.

CAS Crane Scale



TWN Features Crane Scale

Portable Handheld Indicator

As a portable handheld indicator, the TWN can also be used with a car cradle or placed on a desk or a table using a stand.

Crane Scale TWN

Data Storage

Available to store 100EA of Items & 5,000 weight data including date, time and gross weight to be printed

TFT LCD Display with Alphanumeric & Function keypad

Providing flexibility and easy function control with the use of an Alphanumeric & Function keypad. The high contrast TFT LCD display along with the screen visor allows the user to view the weight with little obstruction.

Crane Scale Wireless Remote



Features of Crane Scale

  1. Compact size and handheld type
  2. TFT LCD display with screen visor
  3. USB communication to PC
  4. The memory capacity of 100 items & 5000 recorded ‘weight’ data; including date, time, and gross weight all of which can be printed.



Crane Scale Connection

  1. Control and view the CASTON lllPLUS weight reading wirelessly using the TWN. (CASTON lllPLUS ↔ TWN).
  2. Connect to a wireless Bluetooth printer for printing data. (TWN ↔ MOBILE PRINTER).
  3. Connect the TWN to a PC via USB to upload/download Weighing Data, Item No., Item Name, Header Text (for printing) (TWN ↔ PC).

Crane Scale Connection



Crane Scale Connection Crane Scale Connection Crane Scale Connection



Crane Scale Specification

CAS Crane Scale CASTON III PLUS
Max.capacity (kg) 2000 kg ( 2 Ton)
3,000 kg (3 Ton)
5,000 kg (5 Ton)
10,000 kg (10 Ton)
15,000 kg (15 Ton)
20,000 kg (20 Ton)
Readability (kg) 1kg
2kg
5kg
10kg
Display type 5 digits LED(1.5 inches)
Operating temperature -10˚C~+40˚C
Power source DC 12V Rechargeable battery
Power Consumption 1.2 ~ 2.4W
Display lamp ZERO, TARE, HOLD, LOW BATTERY LAMP
Battery operating time (continuous) 40 HOURS
Battery charging time 8 HOURS
Options Sun visor, Bluetooth communication, TWN
Product weight (kg) 2 Ton – 28 kg
3 Ton – 28 kg5 Ton – 31 kg
10 Ton – 44 kg
15 Ton – 53 kg
20 Ton – 76 kg



Crane Scale Features

  1. 1.5-inch high visibility LED display
  2. Rugged enclosure suitable for rough environment
  3. Watertight structure, protect against moisture and dust
  4. High accuracy of up to +/-0.03% of capacity
  5. Infrared remote controller (for up to 8m)
  6. Easy to change a battery pack
  7. Low battery status lamp
  8. Auto power off, sleep mode, hold functions
  9. Swivel Hook

Crane Scale Options

  • Sun visor
  • Bluetooth communication
  • TWN(Portable handheld indicator)



Crane Scale Dimensions

Crane scale size and Capacity





CAPACITY A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
10,000 kg 667 370 Φ83 845 57.2 42 57.2
15,000 kg 682 370 Φ99 886 63.5 50 63.5
20,000 kg 725 370 Φ126 990 86 60 86

Get Free Delivery, Installation &  COVID-19 Guidelines

  • Get Free Delivery & Installation of all Weighing Scale in Only Delhi NCR – Noida, Greater Noida, Ghaziabad, Delhi, Gurugram, and Meerut (Note* –  UP Scales don’t provide delivery in outer Delhi NCR).
  • Our Delivery & Installation Engineers follow all COVID-19 guidelines while delivering & Installation of Weighing Scales given by the Indian Health Ministry and World Health Organization.
SKU: crane-scale-cas-caston3 Categories: , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Specifications

Display

320*240 TFT LCD
OPERATION TEMPERATURE

– 10 ~ +40 ℃ ℃
POWER SOURCE

DC 6 V Rechargable Battery / AC Adaptor
POWER CONSUMPTION

0.6 ~ 1W
DISPLAY LAMP

ZERO, TARE, HOLD, LOW BATTERY LAMP
CONTINUOUS USING TIME

60 HOURS
Remote TWN Frequency

2.4GHz
Remote TWN Communication methods

ZIGBEE (BLUETOOTH)
Remote TWN Baud Rate

9600
Remote TWN Effective distance for communications

Maximum about 50 ~ 100M
Remote TWN Display

320*240 TFT LCD
Remote TWN Display below zero

“-” minus signal
Remote TWN Battery life time

Approx. 24hours
Remote TWN Battery changing time

Approx. 5 ~ 6 hours
Remote TWN Power

TWN : Rechargeable DC Battery 3.7V, Charger: adapter for charging (4.2V 4400mA)
Remote TWN Temperature range

-10℃ ~ 55℃
Remote TWN Function

Remote TWNPrinter interface, zero, tare, hold, print ID setting, weight sum.
Capacity

2000 kg, 3000 kg, 5000 kg, 10000 kg, 15000 kg, 20000 kg, 2 Ton, 3 Ton, 5 Ton, 10 Ton, 15 Ton, 20 Ton
Government Calibration Certificate

One Year Government Calibration Verification Certificate and Stamping, NABL Certificate
Free Delivery & Installation

Noida, Greater Noida, Ghaziabad, Delhi NCR
brands

CAS
color

Yellow



CAS Crane Scale CASTON III PLUS
Max.capacity (kg) 2000 kg ( 2 Ton)
3,000 kg (3 Ton)
5,000 kg (5 Ton)
10,000 kg (10 Ton)
15,000 kg (15 Ton)
20,000 kg (20 Ton)
Readability (kg) 1kg
2kg
5kg
10kg
Display type 5 digits LED(1.5 inches)
Operating temperature -10˚C~+40˚C
Power source DC 12V Rechargeable battery
Power Consumption 1.2 ~ 2.4W
Display lamp ZERO, TARE, HOLD, LOW BATTERY LAMP
Battery operating time (continuous) 40 HOURS
Battery charging time 8 HOURS
Options Sun visor, Bluetooth communication, TWN
Product weight (kg) 2 Ton – 28 kg
3 Ton – 28 kg5 Ton – 31 kg
10 Ton – 44 kg
15 Ton – 53 kg
20 Ton – 76 kg
